COAXIAL CABLE. DUAL SHIELD, SOLID CONDUCTOR, 50 OHMS. FLL100A COAXIAL CABLE, RG316, MIL-C-17, BLUE FEP JACKET. RG316-BLU

FLL195 COAXIAL CABLE. DUAL SHIELD, SOLID CENTER CONDUCTOR. ROHS COMPLIANT

$ 0.63

Last hours of black friday promotion:

Ordered: 0
Items available: 100000

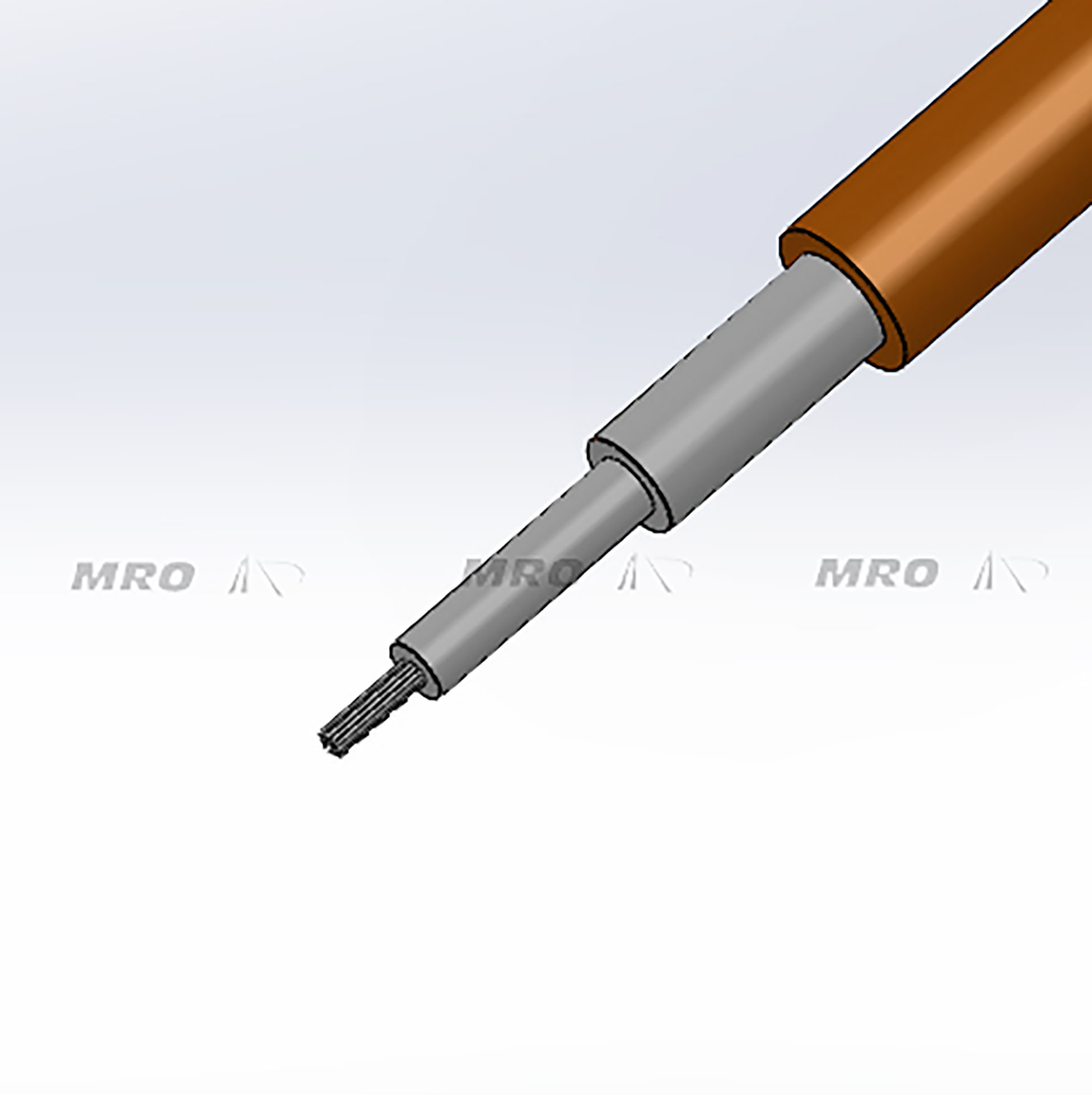

MRO Part Number # FLL195This coaxial cable is functionally equivalent to LMR195 and  may be used as a lower loss substitute for RG58. Usable anywhere a medium-sized flexible coax is needed such as GPS, WLAN, or mobile antennas, or any application that requires a low loss RF cable that is easily routed. The center conductor is solid copper of 0.94mm (0.037 inches), the dielectric is foam polyethylene, the shield is bonded aluminum foil with tinned copper braid, and the jacket is black polyethylene of 4.95 mm (.195 inches) OD. The PE jacket enhances the cable’s cold weather capability, chemical and water resistance, and allows for direct burial. The temperature range is 40 to 85 C (40 to 185 F). The impedance is 50 ohms, the propagation velocity (velocity factor) is 80%, and the capacitance of 25.4 pf/ft. The cutoff frequency is 41 GHz.RoHS compliantFLL195 Data sheet
